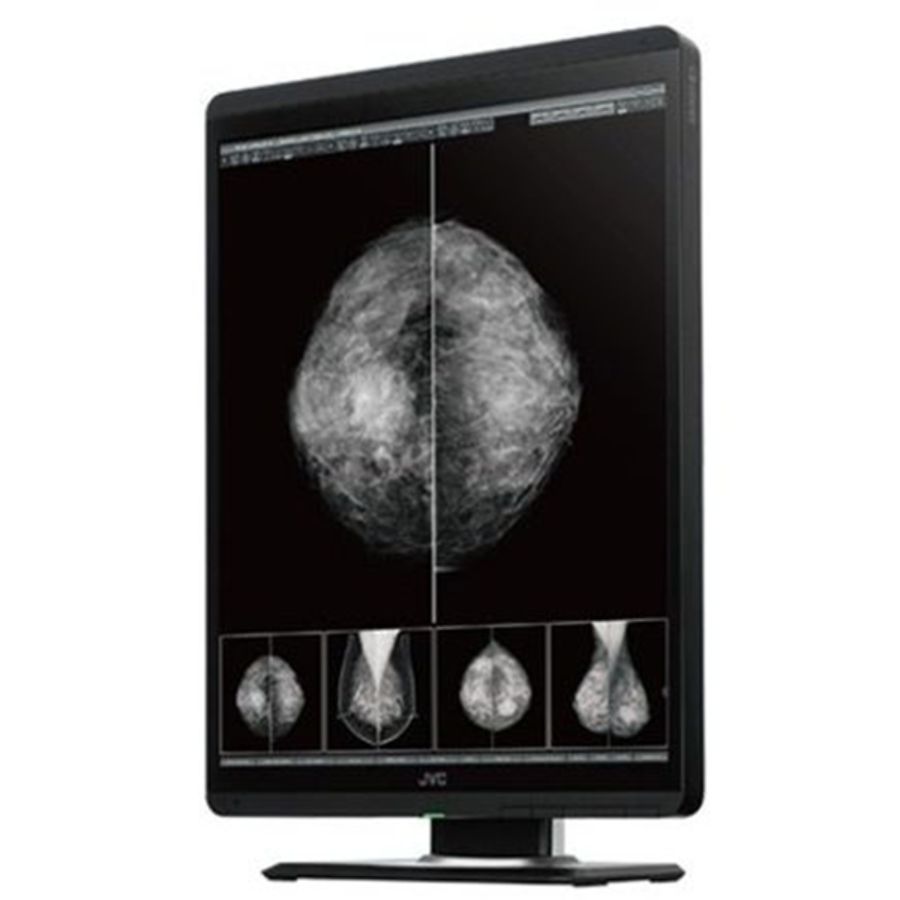

MS-S500 comes with 1,000 cd/? calibration to make it the best solution for breast image diagnosis. With a maximum luminance of 3000 cd/?, a long lifetime is secured even in this preset. The brighter screen dramatically increases the number of perceptual grayscale steps to improve the visibility of microcalcifications, tumors, and structures.
| Display Resolution | 2048 x 2560 |
|---|---|
| Screen Technology/Type | monochrome TFT IPS technology |
| Screen Size (diagonal) | 21.3-inch |
| Pixel Pitch | 0.165 mm x 0.165 mm |
| Viewing Angle (H, V) | 178? vertical and horizontal |
| Contrast Ratio | 2000:1 (typ.) |
| Video Input Connectors | DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.2a compliant) |
| Power Input Requirements | 100V ? 240 V 50/60 Hz |
| Power Consumption | 80W (typ.) |
| Dimensions with Stand (W x H x D) | Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm, Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm |
| Net Weight with Stand | approx. 9.5 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS |
